Dimension Reference

Standard dimensions for scenic, event, exhibit, and architectural work.

A quick mobile-friendly lookup tool for common furniture, theatre, exhibit, event, and architectural dimensions.

98 items found

Experiential - Exhibition

Standard Booth (10'x10')

Width10'-0"

Depth10'-0"

Height8'-0"

NoteStandard inline booth space

Experiential - Exhibition

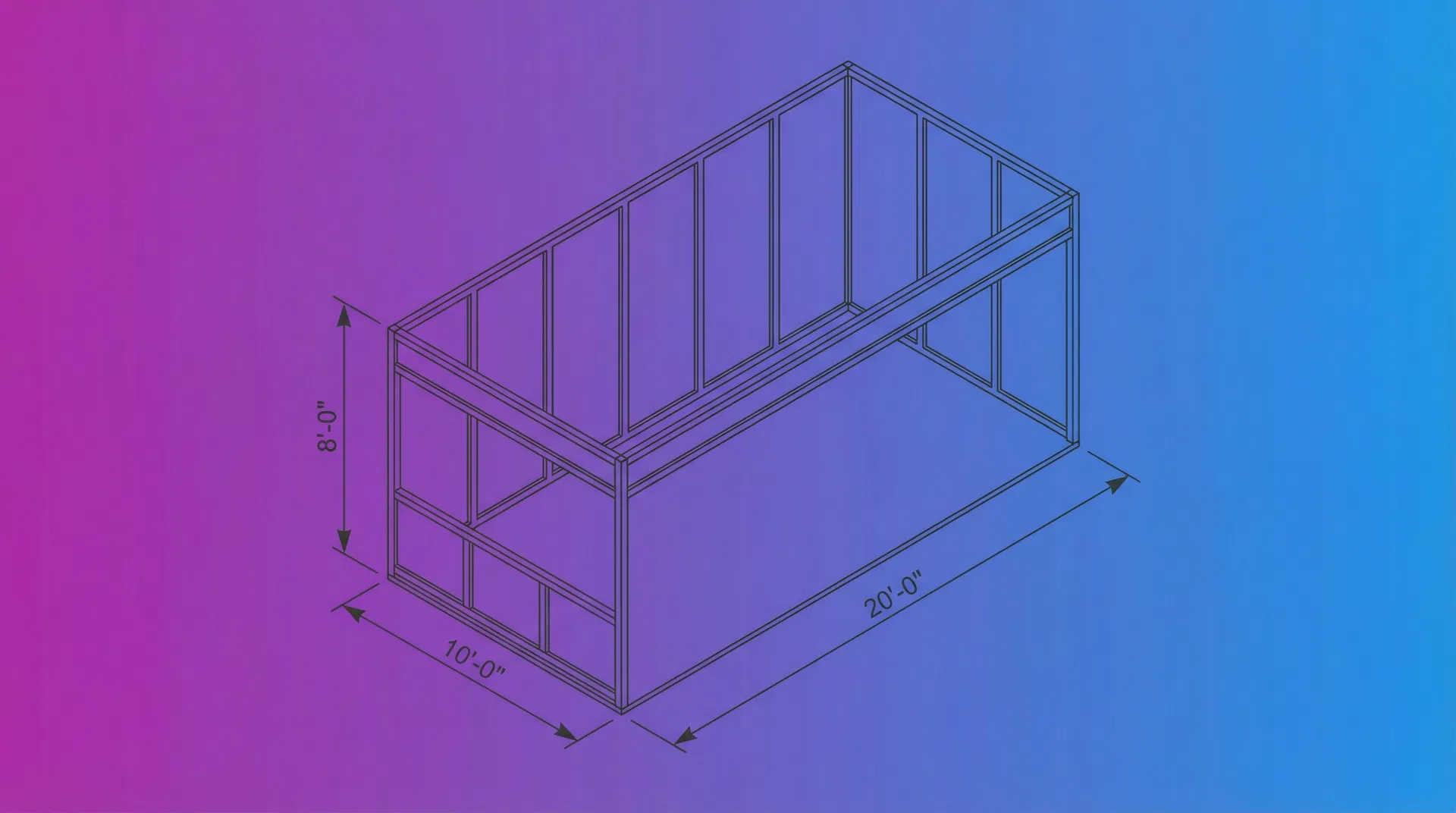

Standard Booth (10'x20')

Width20'-0"

Depth10'-0"

Height8'-0"

NoteDouble inline booth

Experiential - Exhibition

Standard Booth (20'x20')

Width20'-0"

Depth20'-0"

NoteIsland booth, height often restricted to 16'-20'

Experiential - Exhibition

BeMatrix Frame (1x2.5m)

Width992mm (39.06")

Depth62mm

Height2480mm (97.64")

NoteIndustry standard modular frame system

Experiential - Exhibition

BeMatrix Frame (1x1m)

Width992mm (39.06")

Depth62mm

Height992mm (39.06")

Experiential - Exhibition

Banner Stand (Retractable)

Width33.5"

Depth10"

Height78" - 80"

NoteTypical pull-up banner visual area

Experiential - Exhibition

Meter Board (Signage)

Width38" - 39"

Height84" - 96"

NoteFreestanding lobby signage

Experiential - Exhibition

Hanging Sign (Ring 10')

Height36" - 48"

Diameter10'-0"

NoteOverhead rigging required

Experiential - Exhibition

Registration Counter

Width40" - 60"

Depth24" - 30"

Height40" - 42"

NoteStanding height transaction surface

Experiential - AV & Tech

LED Tile (500x500)

Width500mm (19.68")

Depth75-100mm

Height500mm (19.68")

NoteStandard cabinet size

Experiential - AV & Tech

LED Tile (500x1000)

Width500mm (19.68")

Depth75-100mm

Height1000mm (39.37")

NoteDouble height cabinet

Experiential - AV & Tech

Monitor 55" (Display)

Width~48.5"

Depth2" - 3"

Height~28"

NoteDiagonal 54.6"

Experiential - AV & Tech

Monitor 65" (Display)

Width~57"

Depth2" - 3"

Height~33"

NoteDiagonal 64.5"

Experiential - AV & Tech

Monitor 75" (Display)

Width~66"

Depth2.5" - 3.5"

Height~38"

NoteDiagonal 74.5"

Experiential - AV & Tech

Monitor 85" (Display)

Width~75"

Depth3" - 4"

Height~43"

NoteDiagonal 85.6"

Experiential - AV & Tech

Monitor 98" (Display)

Width~86"

Depth3.5" - 4.5"

Height~49"

NoteDiagonal 98"

Experiential - AV & Tech

iPad (10.9" Air)

Width7.02"

Depth0.24"

Height9.74"

NoteKiosk standard

Experiential - AV & Tech

Server Rack (Standard)

Width24"

Depth36" - 42"

Height79" (42U) - 84"

NoteStandard IT/AV rack footprint

Experiential - AV & Tech

Projector (Large Venue)

Width24"

Depth26" - 30"

Height10" - 14"

NoteApprox. 20k lumen class

Experiential - Activation

Step & Repeat (8x8)

Width8'-0"

Depth18"

Height8'-0"

NoteStandard photo backdrop

Experiential - Activation

Step & Repeat (10x8)

Width10'-0"

Depth18"

Height8'-0"

NoteWider group photos

Experiential - Activation

Photo Booth (Open Air)

Width6'-0"

Depth8'-0" - 10'-0"

Height8'-0"

NoteOptimal footprint for camera + backdrop + guests

Experiential - Activation

Sampling Counter

Width30" - 36"

Depth18" - 24"

Height36" - 40"

NotePortable demo station

Experiential - Activation

Stanchion (Retractable)

Width14"

Height40"

NoteBelt length approx 7' usable

Experiential - Activation

Red Carpet Runner

Width3'-0" - 4'-0"

NoteStandard rental widths

Experiential - Activation

Charging Station (Kiosk)

Width24"

Depth24"

Height60" - 72"

NoteFreestanding unit

Furniture - Seating

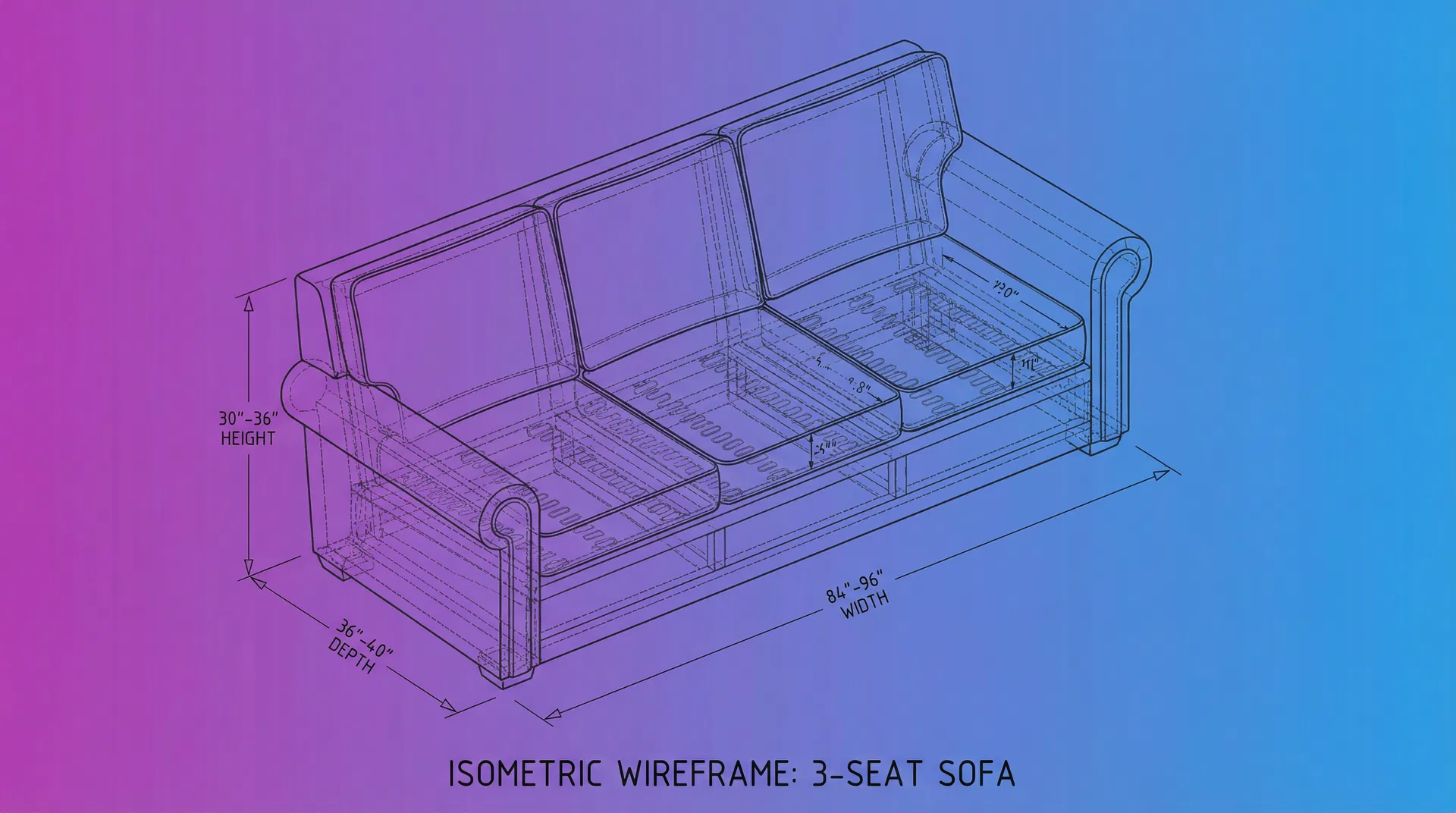

Standard Sofa (3-Seat)

Width84" - 96"

Depth36" - 40"

Height30" - 36"

NoteCommon residential

Furniture - Seating

Loveseat (2-Seat)

Width58" - 64"

Depth36" - 40"

Height30" - 36"

Furniture - Seating

Armchair

Width30" - 36"

Depth32" - 38"

Height30" - 36"

Furniture - Seating

Club Chair

Width32" - 36"

Depth34" - 38"

Height28" - 32"

Furniture - Seating

Accent Chair

Width26" - 30"

Depth28" - 32"

Height32" - 36"

Furniture - Seating

Dining Chair (Standard)

Width18" - 20"

Depth20" - 24"

Height36" - 40"

Furniture - Seating

Counter Stool

Width16" - 18"

Depth16" - 18"

Height24" - 26"

Furniture - Seating

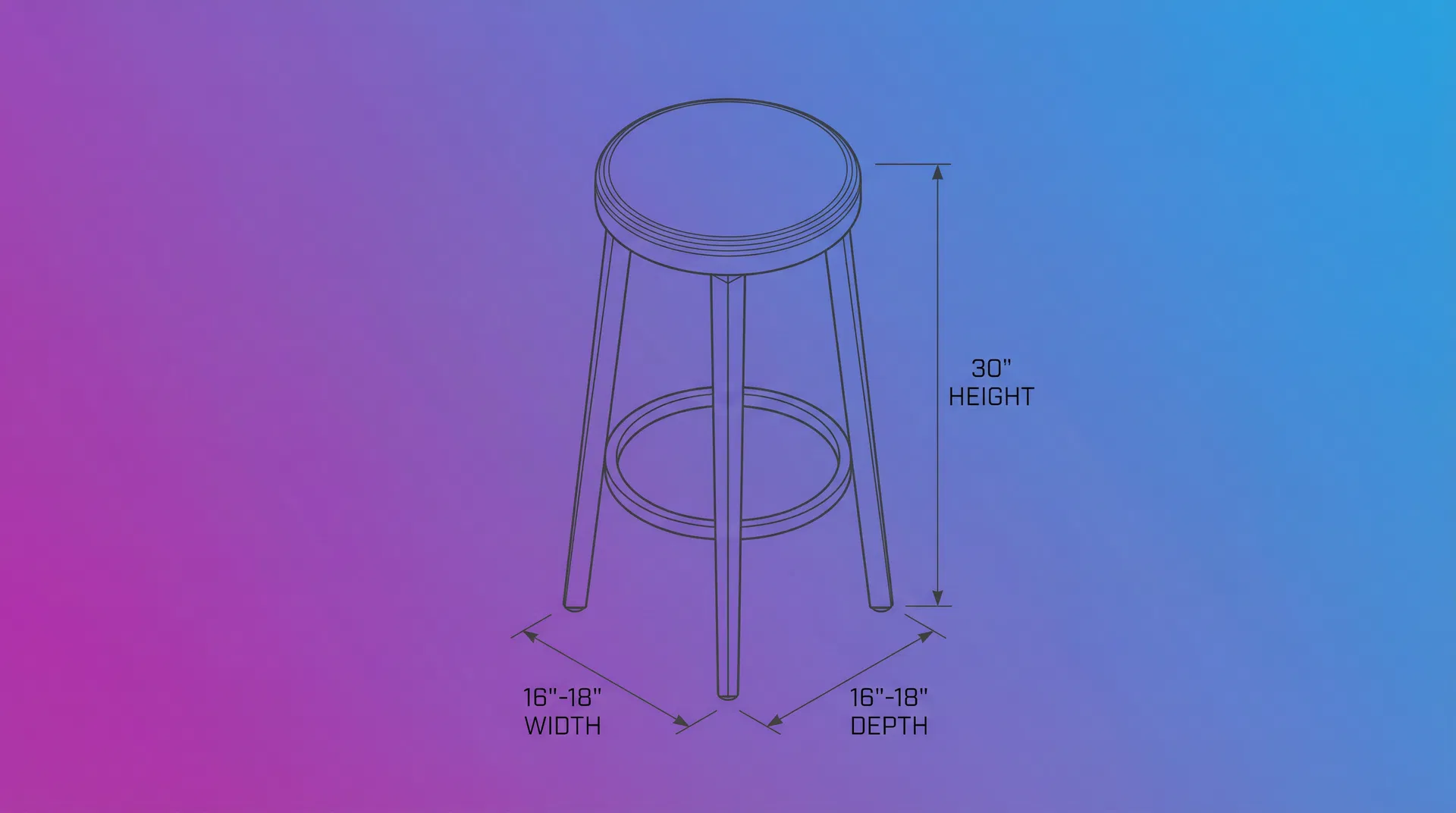

Bar Stool (Standard)

Width16" - 18"

Depth16" - 18"

Height30"

Furniture - Tables

Coffee Table (Rectangle)

Width48" - 60"

Depth24" - 30"

Height16" - 18"

Furniture - Tables

Coffee Table (Round)

Height16" - 18"

Diameter36" - 48"

Furniture - Tables

End Table / Side Table

Width18" - 24"

Depth18" - 24"

Height22" - 26"

Furniture - Tables

Dining Table (4-Person)

Width48"

Depth30" - 36"

Height28" - 30"

Furniture - Tables

Dining Table (6-Person)

Width60" - 72"

Depth36" - 42"

Height28" - 30"

Furniture - Tables

Dining Table (8-Person)

Width84" - 96"

Depth36" - 42"

Height28" - 30"

Furniture - Tables

Console Table

Width48" - 72"

Depth12" - 18"

Height30" - 36"

Furniture - Storage

Bookcase (Standard)

Width30" - 36"

Depth12" - 14"

Height72" - 84"

Furniture - Storage

Dresser (6-Drawer)

Width54" - 60"

Depth18" - 20"

Height30" - 34"

Furniture - Storage

Chest of Drawers (5-Drawer)

Width30" - 36"

Depth18" - 20"

Height48" - 54"

Furniture - Storage

Nightstand

Width20" - 28"

Depth16" - 20"

Height24" - 28"

Furniture - Storage

Armoire / Wardrobe

Width36" - 48"

Depth20" - 24"

Height72" - 84"

Furniture - Storage

Media Console / TV Stand

Width48" - 72"

Depth16" - 20"

Height20" - 30"

Furniture - Beds

Twin Bed

Width39"

Depth75"

Height25" (mattress)

Furniture - Beds

Full Bed

Width54"

Depth75"

Height25"

Furniture - Beds

Queen Bed

Width60"

Depth80"

Height25"

Furniture - Beds

King Bed

Width76"

Depth80"

Height25"

Furniture - Beds

California King Bed

Width72"

Depth84"

Height25"

Theatre - Flats

Standard Flat (4'x8')

Width4'-0"

Depth3/4" (thickness)

Height8'-0"

NoteMost common scenic flat

Theatre - Flats

Standard Flat (4'x10')

Width4'-0"

Depth3/4"

Height10'-0"

Theatre - Flats

Standard Flat (4'x12')

Width4'-0"

Depth3/4"

Height12'-0"

Theatre - Flats

Standard Flat (4'x14')

Width4'-0"

Depth3/4"

Height14'-0"

NoteTall flat for proscenium

Theatre - Flats

Standard Flat (4'x16')

Width4'-0"

Depth3/4"

Height16'-0"

NoteVery tall flat

Theatre - Platforms

Standard Platform (4'x8')

Width4'-0"

Depth8'-0"

Height6" - 12" (typical)

NoteCommon deck size

Theatre - Platforms

Standard Platform (4'x4')

Width4'-0"

Depth4'-0"

Height6" - 12"

Theatre - Platforms

Standard Platform (2'x8')

Width2'-0"

Depth8'-0"

Height6" - 12"

Theatre - Doors

Interior Door (Standard)

Width2'-8" - 3'-0"

Depth1-3/8" (thickness)

Height6'-8"

Theatre - Doors

Exterior Door (Standard)

Width3'-0"

Depth1-3/4"

Height6'-8" - 7'-0"

Theatre - Doors

French Door (Single)

Width2'-6" - 3'-0"

Depth1-3/4"

Height6'-8" - 8'-0"

Theatre - Doors

Double Door (Pair)

Width5'-0" - 6'-0"

Depth1-3/4"

Height6'-8" - 8'-0"

Theatre - Stairs

Standard Riser Height

Height7" - 7.5"

NoteCode compliant

Theatre - Stairs

Standard Tread Depth

Depth10" - 11"

NoteCode compliant

Theatre - Stairs

Stair Width (Minimum)

Width36"

NoteCode minimum for egress

Event - Tables

Round Table (60")

Height30"

Diameter60"

NoteSeats 8-10

Event - Tables

Round Table (72")

Height30"

Diameter72"

NoteSeats 10-12

Event - Tables

Banquet Table (6')

Width30"

Depth72"

Height30"

NoteSeats 6

Event - Tables

Banquet Table (8')

Width30"

Depth96"

Height30"

NoteSeats 8-10

Event - Tables

Cocktail Table (30")

Height42"

Diameter30"

NoteStanding height

Event - Tables

Cocktail Table (36")

Height42"

Diameter36"

Event - Staging

Stage Deck (4'x8')

Width4'-0"

Depth8'-0"

Height8" - 32" (adjustable)

NoteModular staging

Event - Staging

Stage Deck (4'x4')

Width4'-0"

Depth4'-0"

Height8" - 32"

Event - Staging

Riser (Choral)

Width6'-0" - 8'-0"

Depth18" - 24"

Height8" - 12" per level

Event - Seating

Chiavari Chair

Width15.5"

Depth17"

Height36"

NotePopular event chair

Event - Seating

Folding Chair (Standard)

Width18"

Depth20"

Height32"

Event - Seating

Ghost Chair

Width15"

Depth18"

Height36"

NoteClear acrylic

Event - Linens

Tablecloth (60" Round)

Diameter120"

NoteFloor length for 60" table

Event - Linens

Tablecloth (72" Round)

Diameter132"

NoteFloor length for 72" table

Event - Linens

Tablecloth (6' Banquet)

Width90"

Depth132"

NoteFloor length

Event - Linens

Tablecloth (8' Banquet)

Width90"

Depth156"

NoteFloor length

Architecture - Circulation

Corridor Width (Minimum)

Width36"

NoteADA minimum

Architecture - Circulation

Corridor Width (Preferred)

Width48" - 60"

NoteComfortable two-way traffic

Architecture - Circulation

Doorway (ADA)

Width36" (clear)

NoteMinimum clear opening

Architecture - Circulation

Wheelchair Turning Circle

Diameter60"

NoteADA requirement

Architecture - Heights

Ceiling Height (Standard)

Height8'-0" - 9'-0"

NoteResidential

Architecture - Heights

Ceiling Height (Commercial)

Height9'-0" - 12'-0"

NoteOffice/retail

Architecture - Heights

Door Height (Standard)

Height6'-8"

NoteStandard interior

Architecture - Heights

Window Sill Height

Height30" - 36"

NoteStandard residential

Architecture - Heights

Light Switch Height

Height48"

NoteADA compliant

Architecture - Heights

Outlet Height

Height12" - 18"

NoteStandard residential

Architecture - Counters

Kitchen Counter Height

Depth24" - 25"

Height36"

NoteStandard

Architecture - Counters

Kitchen Island Height

Depth36" - 48"

Height36"

Architecture - Counters

Bar Counter Height

Depth16" - 20"

Height42"

Architecture - Counters

Bathroom Vanity Height

Depth21" - 24"

Height32" - 36"

Architecture - Counters

Reception Desk Height

Depth24" - 30"

Height42" - 48"

NoteStanding transaction
