How to Create Trim Profiles in Vectorworks Using the Polyline Tool
A practical Vectorworks workflow for creating clean, reusable trim profiles with the Polyline tool for scenic drafting and production packages.
The source image gives the profile enough visual information to trace, while the dimensions keep the drawing honest. The goal is not to copy a picture; it is to translate a real product profile into clean scenic drafting geometry.
The useful move is to avoid fighting image scale too early. The Polyline Tool can resolve corners, arcs, and transitions at a comfortable size, then the Object Info palette can bring the finished trace to the correct width and height.
Once the shape reads correctly, the workflow becomes part of a library practice. Class assignment and symbol creation make the trim profile available as a repeatable 2D resource instead of a one-time drawing.
Use the reference to set limits
The product image supplies the silhouette; the dimensions supply the check against drift.
A useful source provides enough information to draft from, not just a decorative outline to copy.
Let vertex modes do the work
Corner, arc, and point-editing decisions let the trace follow the profile instead of approximating it with one generic curve.
The Polyline Tool becomes useful when the curve is broken into deliberate decisions.
Save the solved detail
A classed 2D symbol turns the finished profile into a piece of the drafting library.
The payoff is consistency across future drawings, not just a cleaner line on this one page.
Source to symbol
From reference image to reusable detail.
Source the profile, trace the curve deliberately, scale the finished linework, and save the detail where the next drawing can find it.
Source
Start with a measured profile
Use a manufacturer image that includes the molding silhouette and dimensions, so the drawing begins from evidence rather than a guess.
Trace
Build the curve before the scale
Trace the crown profile with the Polyline tool, using vertex modes to separate corners, arcs, and adjusted points.
Scale
Apply real dimensions after the shape reads
Once the profile is clean, scale the traced geometry in X and Y from the Object Info palette to match the product dimensions.
Reuse
Save it as a 2D symbol
Convert the final profile into a reusable Resource Manager asset, with Convert to Group enabled when placement should become editable drafting geometry.
Trace
Polyline vertex modes
Break a profile into decisions about corners, arcs, and editable curve points.
- Corner vertex
- Arc or radius transition
- Point editing for refinement
Scale
Scale after tracing
Apply manufacturer dimensions to resolved geometry instead of distorting the reference too early.
- Trace at a comfortable size.
- Apply width and height deliberately.
- Match the manufacturer labels.
One guiding idea
“First make the profile legible. Then make it accurate. Then make it reusable.”
Let the source set the boundary conditions
The opening move is research, not drawing. A molding profile is only useful if the silhouette and the measurements can be held together, so the source needs to show more than a decorative outline.
That does not mean the image has to be perfect. It means the drafter needs enough information to understand what is being traced and what dimension will later anchor the result. The reference establishes the problem before Vectorworks starts solving it.

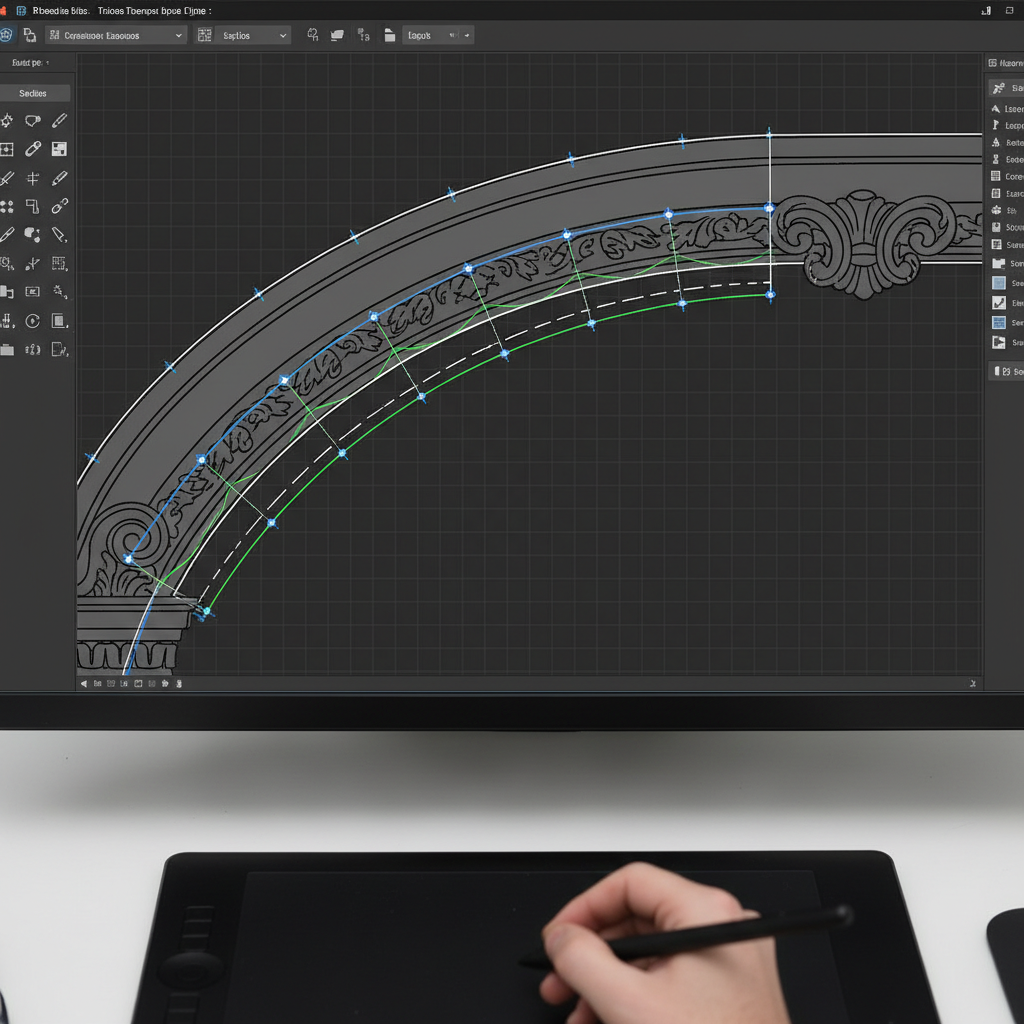

Use the Polyline Tool as a drafting instrument
The trace is not a freehand copy. It is a series of choices about where the profile turns sharply, where it rolls into an arc, and where an edited point can make the curve cleaner.
That is why scale waits until later. At this stage, the important question is whether the profile reads correctly. Once the geometry is resolved, Object Info can apply the real dimensions without making the trace itself harder to control.
Store the result where future sheets can use it

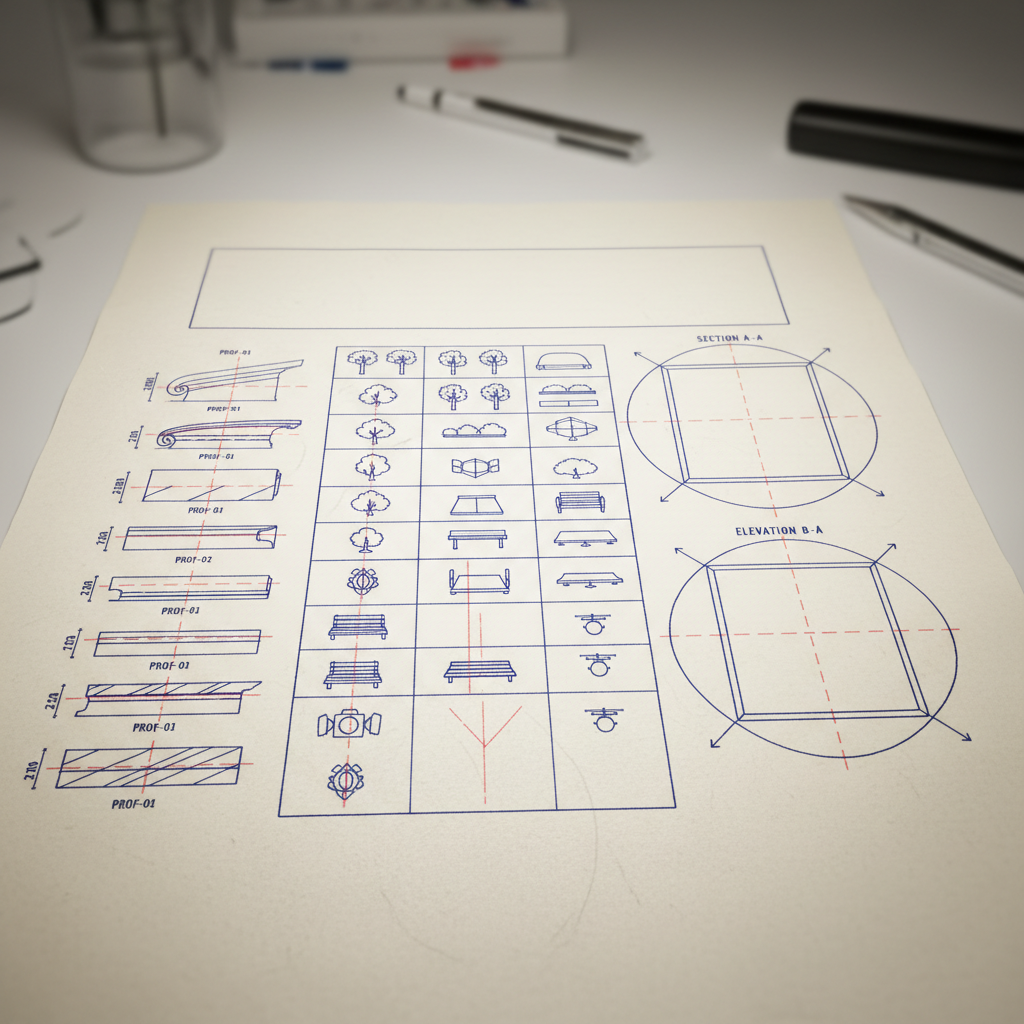

After scaling, the profile becomes more than a traced line. Assigning the correct class and creating a 2D symbol moves the detail into the Resource Manager, where it can return when another sheet needs the same molding.
That is the larger scenic drafting habit underneath the quick tip: solve the detail once, then preserve it in a form that keeps future drawings consistent and editable.
Supporting material
Shortcuts
- 5
- Activate Polyline Tool
- U
- Toggle Vertex Mode
- Cmd/CtrlK
- Create Symbol
- Double Click
- Complete Polyline
Keep in mind
- uDecor is an example reference source, not a guaranteed authority.
- Match the manufacturer height and width labels carefully before scaling.
Related resources
Potential exam questions
Apply the workflow to a drawing problem. Use these cards for study or discussion, then revisit the demonstration when you need context.
Question 1 of 2
In the demonstrated trim workflow, when are the traced profile’s real dimensions applied?
- After tracing, using the manufacturer’s dimension information
- After extruding, by scaling the rendered image
- Only when placing the profile on a sheet
- Before importing, by estimating its size from the thumbnail
Why is Convert to Group enabled when the demonstrated crown-molding symbol is created?
- To turn the profile into a hybrid symbol
- To make its size respond to page scale
- To place editable 2D geometry instead of a linked symbol instance
- To combine all existing molding instances into one definition
